Description
Peplink FlexModules for the Balance 20X are swappable expansion cards that add various WAN connectivity options (like 5G, LTE-A, or VDSL) or specialized functions (like LoRaWAN) to the router, turning the standard device into a highly customizable, future-proof SD-WAN solution for adding backup internet, specialized IoT connectivity, or different wired links without replacing the whole router. These “FlexModule Mini” cards slide into a dedicated slot on the Balance 20X, allowing businesses to adapt to changing network needs easily, such as adding a second cellular connection for redundancy or a LoRaWAN gateway for sensors

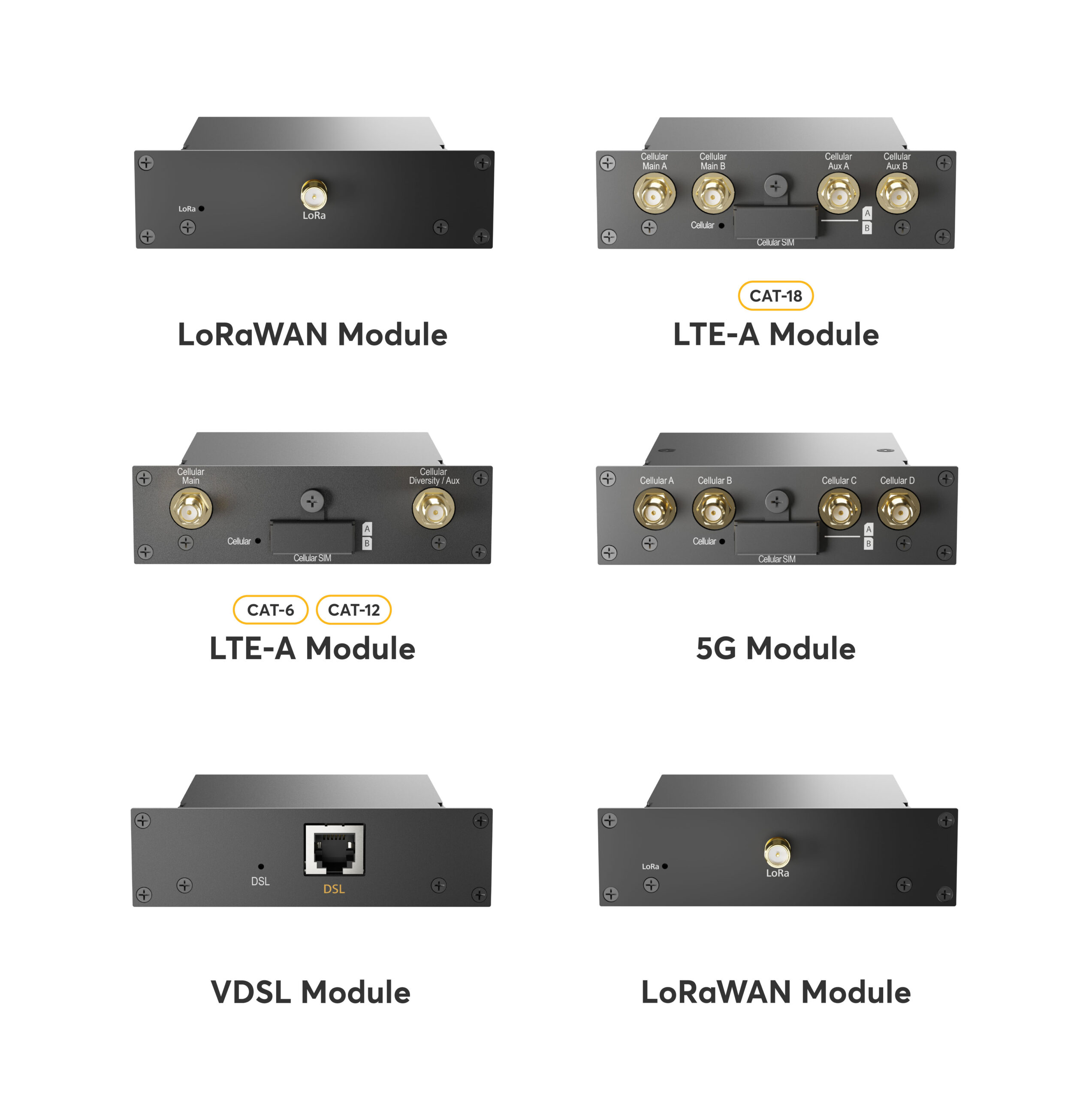

Key Functions & Types:
- Cellular Backup/Primary: Modules with LTE-A (LTE Advanced) or 5G modems provide cellular internet, acting as primary or backup links for businesses needing reliable connectivity, notes this Amazon.com.au listing and this YouTube video.
- LoRaWAN Gateway: The EXM-MINI-LORA module adds long-range, low-power IoT connectivity, ideal for smart cities, agriculture, or metering, explains this Westward Sales article and this Peplink product page.
- Wired Connectivity: A VDSL module adds high-speed DSL support, expanding wired internet options with an RJ11 connector, according to this Powertec New Zealand page.
How They Work:
- Installation: A user opens a plate on the Balance 20X router, slides the FlexModule Mini into the slot (with antenna ports facing out), and secures it, as shown in this YouTube video.
- Customization: Different modules add specific WAN types (Cellular, VDSL) or features (LoRaWAN) to the router.
- Antennas: External antennas connect to ports on the module for cellular or LoRaWAN signals.
Benefits:
- Future-Proofing: Easily upgrade connectivity without buying a new router.
- Redundancy: Add cellular backup to existing connections.
- Versatility: Supports various technologies (cellular, IoT, DSL) in one device.
- Peplink EXM-MINI-LORA Expansion Module – Westward Sales
- Peplink EXM-MINI-LORA FlexModule for the Balance 20X, LoRaWAN. The EXM-MINI-LORA for the Balance 20X can keep your sensor devices
